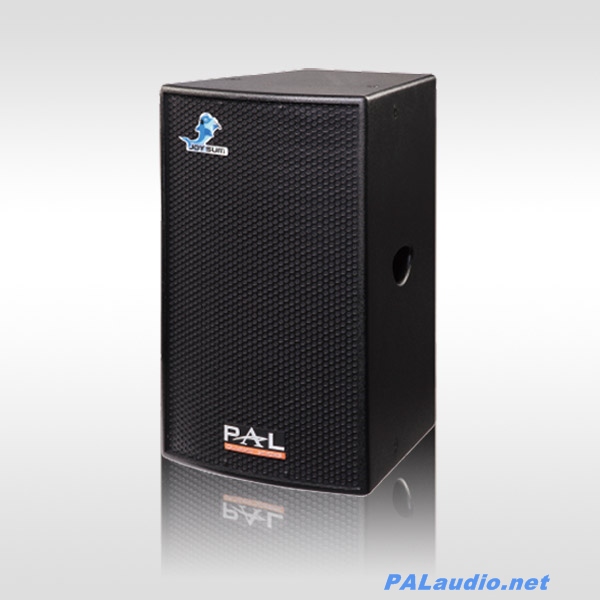

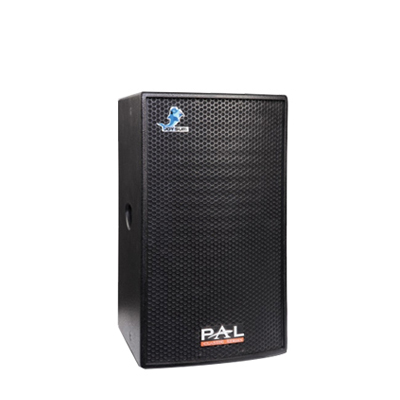

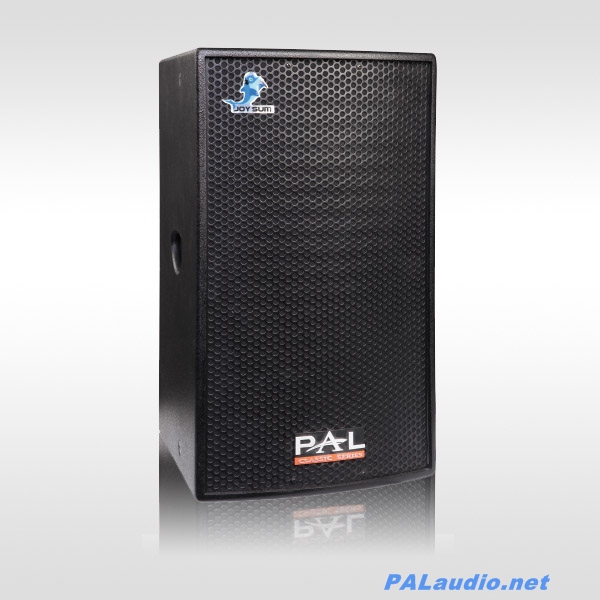

JS Series Loudspeaker

Product introduction
Product parameters

自9饼视频起到爱看不看影视站，经过快科技影吧来到飘影流年影视站，它们将是你的影视不二之选，必久影视和十年影视带你重温必看经典，九点酷娱更能给你一站式的娱乐体验和享受。
- INTRODUCTION
- PAL JS Series speakers are designed for large dynamic, high sound pressure, low-frequency, powerful original sound-source playing Karaoke entertainment ; This series adopts fashionable trapezoidal cabinet structure and 3-way design. The sophisticated design of the crossover and the speaker reduce the phase distortion of the band effectively, and greatly enhance the ability of high-frequency extension and the clarity,it lets the MF more powerful more clear,it can supply tight LF effection. It can fit not only Karaoke but also Disco venues.

  Features:
  1. light wieght design, easy-to-place, with side and rear screw holes for suspension, convenient hanging.
  2. trapezoidal cabinet design, easy to join each other to make an arc-shaped single source array, fitting in large rooms.
  3. recessed connection board design, multilayer waterproof speaker painting surface, hard to damp.
  4. using a foam against grill face design to stop the noise caused by grill resonance, and no any screw can be seen on the front surface.
  5. with double protection technology on built-in crossover plate, when overload distortion occurs on the speaker, the protection circuit will automatically start up, no breaking off sound, to ensure maximum safety.

JS Series Loudspeaker Specifications

model		JS300	JS400
component	LF	LO1250PK	LO1250PK
	HF	MD4202 HI13C2	MD535 HI34N
rat power (W Rms)		300	300
max power (W Rms)		600	600
frequency (Hz～KHz)		45～16(±6dB)	45～18(±6dB)
inpedence (Ω)		8	8
sensitivity (1m/1w)		95dB	95dB
SPL (dB)		119(1m)	119(1m)
radiation angle		H150°V150°	H120°V90°
net weight (KG)		17	18
gross weight (KG)		19	20
demension (mm)		(238.76+349.63)380590	(238.76+349.63)380590
package size (mm)		665460438	665460438
